Catch A Wave Telecaster

Catch A Wave Telecaster Specifications:



Body

  • Warmoth Solid Swamp Ash Telecaster Body

  • Quilt Maple Top

  • Strat / Strat / Telecaster Pickup Configuration

  • Blue Burst Top, Transparent Blue Rear Clear Gloss Finish

Neck

  • Warmoth Modern Construction Flame Maple Neck

  • 25-1/2” Scale Length

  • Standard Thin Profile

  • 10”-16” Compound Radius

  • Dark Indian Rosewood Fingerboard

  • Cream Inlay Dots

  • White Side Dots

  • 1-11/16” Nut Width

  • GraphTech White TUSK XL Standard Nut

  • 22 Stainless Steel Jumbo Frets (SS6150)

  • Clear Gloss Finish

  • Schaller 6-in-line Locking Tuners

Bridge

  • Gotoh Standard Telecaster Bridge

  • GraphTech Piezo Saddles PN-8000-00

  • String Through Body

Pickups

  • Bridge: DiMarzio ChopperT DP384W+N

  • Middle: DiMarzio Cruiser Bridge DP187W+N

  • Neck: DiMarzio Cruiser Bridge DP187W+N

  • Piezo: GraphTech Ghost PN-8000-00 Acoustic Saddles

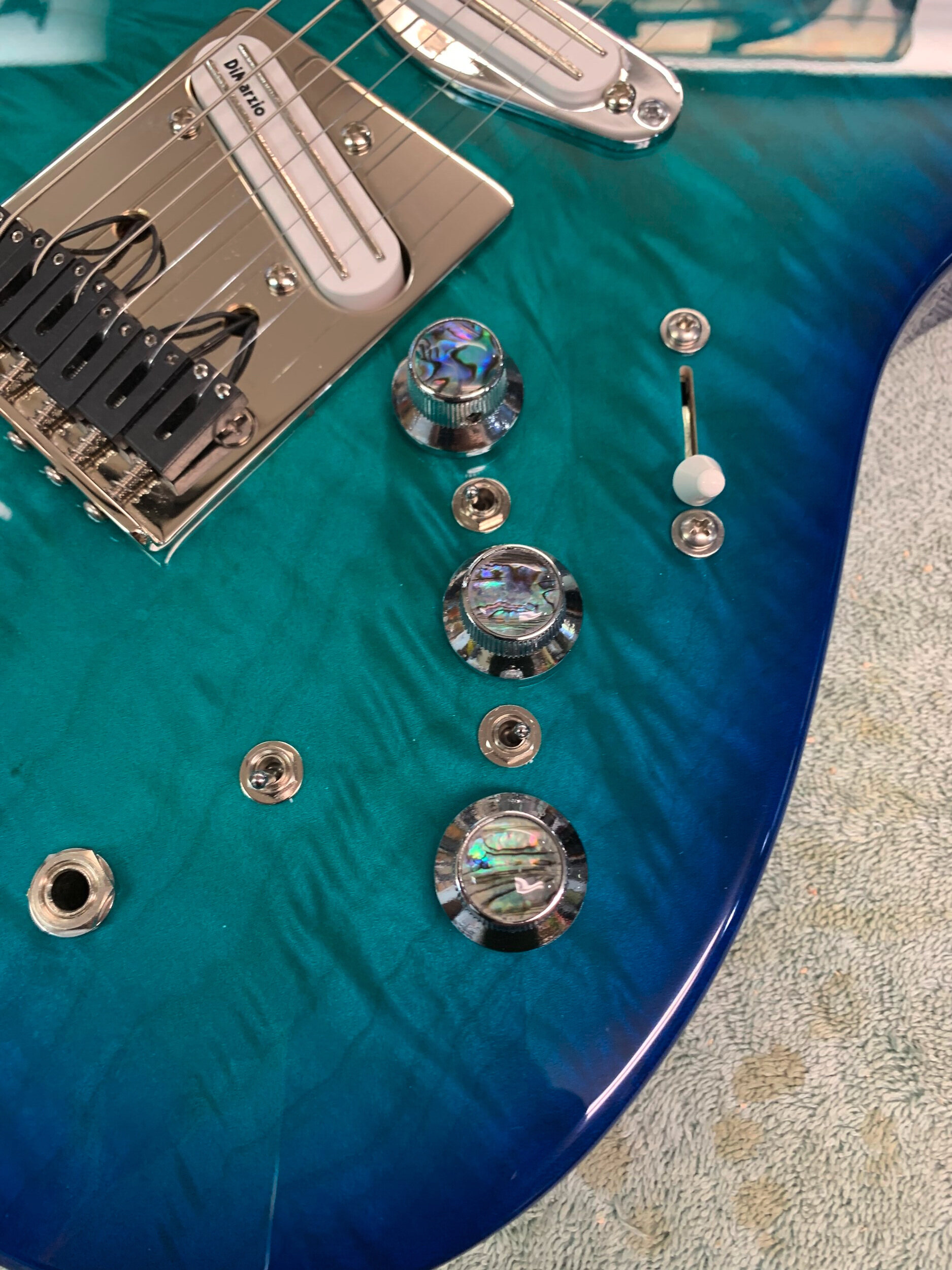

Electronics

  • GraphTech Acousti-Phonic Preamp

  • Magnetic Volume – 500KA Bourns Sealed Potentiometer

  • Acoustic Volume – 500KA Bourns Sealed Potentiometer

  • Magnetic Tone – 500KA Bourns Sealed Potentiometer with 33nF Orange Drop Capacitor enabled only when Neck or Middle Pickups are selected

  • Adjustable Treble Bleed Circuit

  • Dual 9VDC Batteries power preamp using 18VDC

Switching

  • Standard Strat 5-Way Switch

  • Bridge Pickup Override Enable Switch

  • Acoustic Midrange Dark Enable Switch

  • Magnetic / Acoustic 3-Way Selector Switch

Strings

  • Guitar has been setup to support Ernie Ball Hybrid Slinky Strings

  • E: .009

  • B: .011

  • G: .016

  • D: .026

  • A: .036

  • E: .046

Miscellaneous

  • The Neck / Body joint utilizes ..25 degrees shim to ensure that the guitar strings are elevated from the body sufficiently to allow routing cables for the GraphTech Ghost underneath the bridge plate.
