Black Magic Strat Guitar

Black Magic Strat Guitar Specifications:

Body

  • Warmoth Chambered Mahogany Strat Body

  • Quilt Maple Top

  • Contoured Heel

  • Humbucker / Strat / Humbucker Pickup Configuration

  • Black Dye Top, Black Rear Clear Gloss Finish

Neck

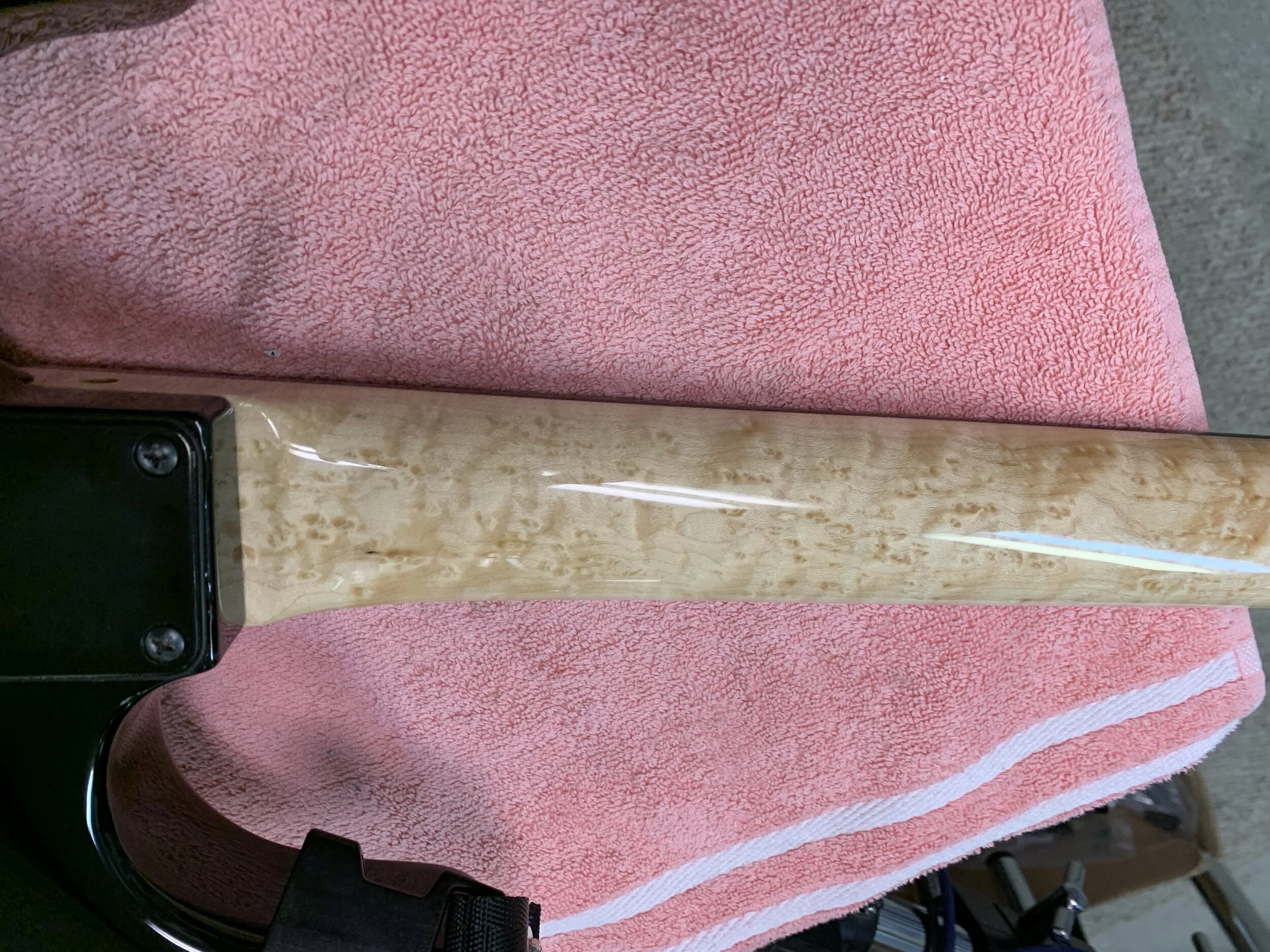

  • Warmoth Modern Construction Birdseye Maple Neck

  • 25-1/2” Scale Length

  • Standard Thin Profile

  • 10”-16” Compound Radius

  • Indian Rosewood Fingerboard

  • Mother of Pearl Dot Inlays

  • White Side Dots

  • 1-11/16” Nut Width

  • GraphTech White TUSK XL Earvana Nut

  • 24 Stainless Steel Jumbo Frets (SS6150)

  • Clear Gloss Finish

  • Sperzel Trim-lock 6-in-line Locking Machine Heads

Tremolo

  • Gotoh 510 Tremolo Bridge

  • GraphTech Piezo Saddles PN-8000-00

  • Killer Guitar Components Brass Tremolo Block for Gotoh 510 Tremolo

  • Killer Guitar Components Killer Brass Claw

  • Rockinger Black Box Tremolo Stabilizer

  • FU-Tone Silent Springs Light Duty Yellow (3x)

Pickups

  • Bridge: DiMarzio Transition Bridge DP255BK+BK

  • Middle: DiMarzio True Velvet Neck DP175SBK

  • Neck: DiMarzio Transition Neck DP254BK+BK

  • Piezo: GraphTech Ghost PN-8000-00 Acoustic Saddles

Electronics

  • GraphTech Acousti-Phonic Preamp

  • Magnetic Volume – 500KA Bourns Sealed Potentiometer

  • Acoustic Volume – 500KA Bourns Sealed Potentiometer

  • Magnetic Tone – 500KA Bourns Sealed Potentiometer with 33nF Orange Drop Capacitor enabled only when Neck or Middle Pickups are selected

  • Adjustable Treble Bleed Circuit

  • Dual 9VDC Batteries power preamp using 18VDC

Switching

  • Standard Strat 5-Way Switch

  • Bridge Pickup Override Enable Switch

  • Pickup Model Selector (H-S-H, H-S-S, S-S-S)

  • Acoustic Midrange Dark Enable Switch

  • Magnetic / Acoustic Selector Switch

Strings

  • Guitar has been setup to support Ernie Ball Regular Slinky Strings

  • E: .010

  • B: .013

  • G: .017

  • D: .026

  • A: .036

  • E: .046

Miscellaneous

  • The Neck / Body joint utilizes .5 degrees shim to ensure that the guitar strings are elevated from the body sufficiently to allow routing cables for the GraphTech Ghost underneath the bridge plate.
